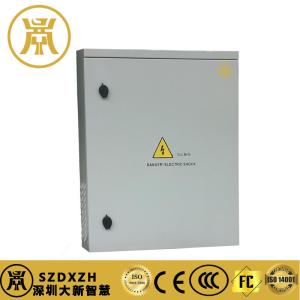

Compact Outdoor UPS Cabinet 500VA Wall Mounted Telecom Cabinet With Remote Monitor

Name: Compact Outdoor UPS Cabinet 500VA Wall Mounted Telecom Cabinet With Remote Monitor
Brand: Daxin
Price: 1 USD

China Compact Outdoor UPS Cabinet 500VA Wall Mounted Telecom Cabinet With Remote Monitor factory

Brand Name : Daxin

Model Number : ODC-705835500-12V

Certification : ISO9001,CE,3C,FCC,TLC,IP55

Place of Origin : Shenzhen,China

MOQ : 1 set

Payment Terms : T/TD/A,Western Union,Paypal,etc

Supply Ability : 3000pcs/month

Delivery Time : 20-40 days

Packaging Details : Woodcase

Price : Negotiation

Product Name : Outdoor UPS Cabinet

Install Method : Pole/Wall Mount

Material : Galvanized steel/ Stainless steel

Customized service : Yes

UPS capacity : 500VA/400W

DC Input : 12V

Contact Now

Outdoor UPS Power Cabinet – Compact 500VA Wall-Mounted Solution With Remote Monitor

Product Overview

The AAM500-12V Outdoor UPS Power Cabinet is a rugged, compact uninterruptible power supply system designed for remote telecommunications, surveillance systems, and IoT applications. This 12V DC input system delivers 500VA/400W of pure sine wave AC output, ensuring seamless power continuity for sensitive equipment in harsh outdoor environments.

Ideal for remote telecom sites & small-scale power backup

Key Features

500VA/400W output with 220V AC pure sine wave
12V DC input compatible with lead-acid/LiFePO4 batteries
Dual-conversion online UPS with 0ms transfer time
Wide AC input range (172–268V AC) and 0.98 power factor
IP54 (outdoor)/IP20 (indoor) protection

Technical Specifications

Parameter	Specification
Output THD	≤3% (linear), ≤8% (nonlinear)
Overload Capacity	130% for 20s
Charging Current	5–7A
Protections	Input/output OVP/UVP, short-circuit, over-temperature
Dimensions	(W×H×D) 300×450×150mm
Weight	12kg (without batteries)

Monitoring & Control:

Local interface:

LED status indicators
Audible alarms

Remote monitoring options:

Standard RS232 port
Optional RS485/SNMP cards
Dry contact alarms (configurable)

Compliance & Certifications

Safety: CE, RoHS
EMC: EN55022 Class A
Environmental: IEC 60068-2 (shock/vibration)

Applications:

Remote telecom base stations
Traffic monitoring systems
Solar-powered installations
Security camera networks
